LOXX® - an accessorie conquers the lifestyle world!

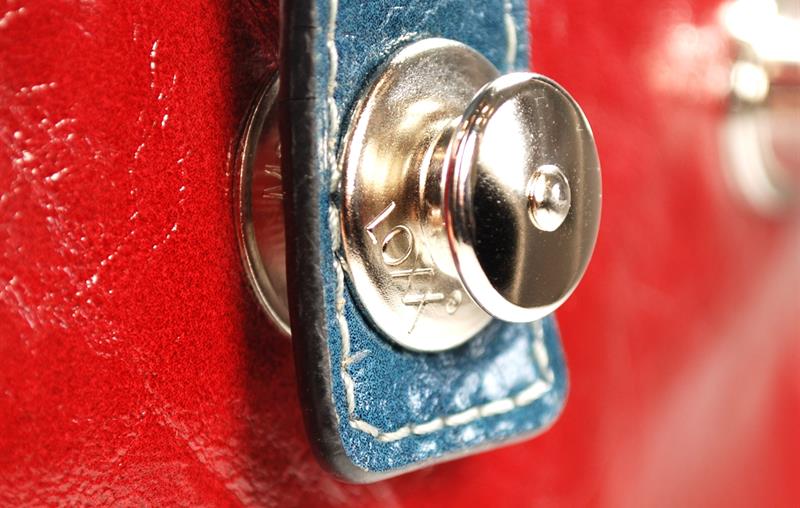

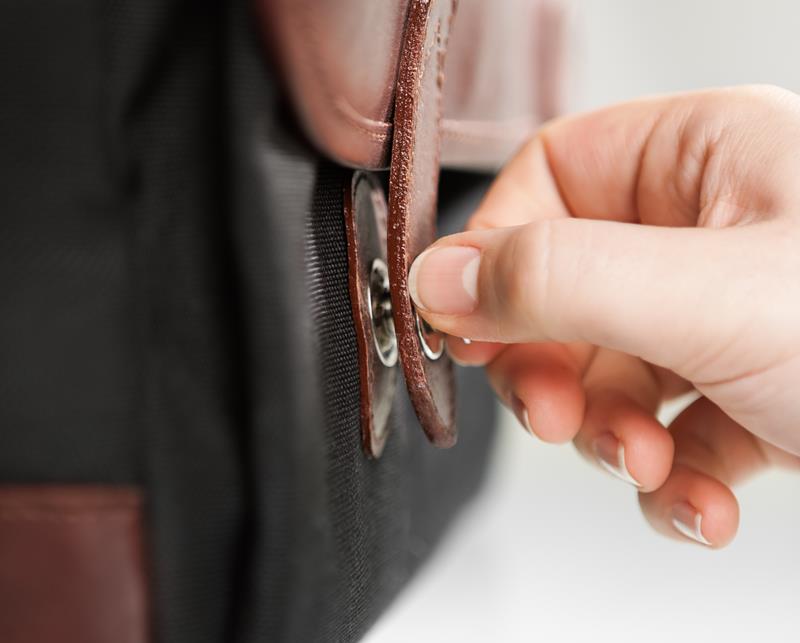

Who would have thought that a small but very smart fastener, at the time only known by a minority of experts in the marine sector, would become an essential accessory for the fashion world within only a few years? Today, LOXX® is used wherever high-quality materials combine to form an exclusive whole. Whether as fastener for bags (Oberwerth Germany), as a connection for straps, as protection against theft, or simply as an accessory for your key chain: the high quality snap fastener LOXX® upgrades the value of your product.

How does LOXX® work?

The LOXX® safety lock always consists of two parts.
It closes and secures automatically as the stainless steel spring of the upper part (similar to a tow hitch) tightly wraps around the ball head of the lower part and latches on to it.

Only by pulling up the cap does the spring release the ball head, and the connection can be disconnected with ease.

This so-called security lock is reliable in use, sustainable in production and surprises time and again with its innovative design.

Made by Schaeffertec - Made in Germany!

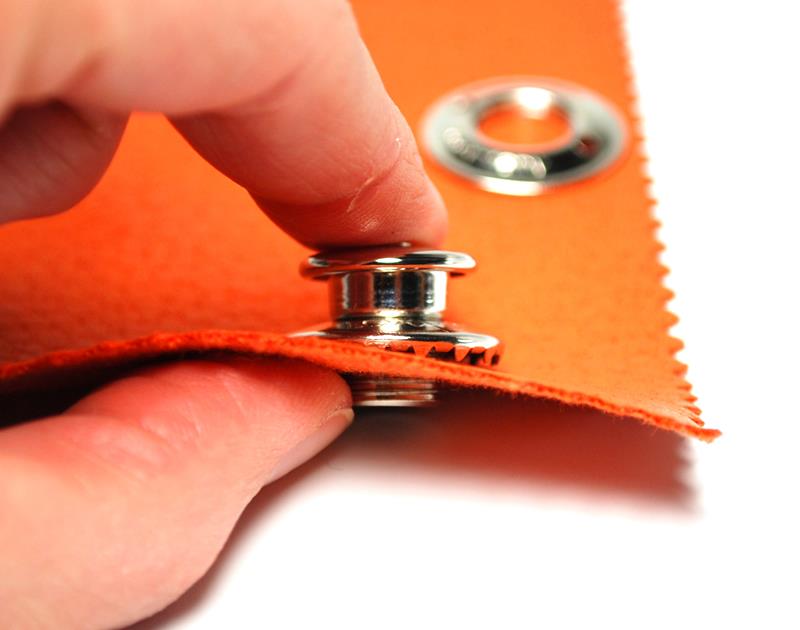

How to install LOXX®:

Upper parts are very easy to attach, as they are installed without sewing or tools.

1) For firm fabrics or leather, cut out a 10mm hole, or punch out with a punching tool. Please note that for softer or stretchy fabrics, the hole should be correspondingly smaller in diameter.

2) Push the thread through the hole, screw the washer on and tighten it with the small key. Done!

This procedure is the same for all upper parts and for the large lower part for fabric (fabric screw).

Click here for the demonstration video.

Depending on the application, there are many other lower parts that can be attached using a needle, glue or a small tool.

Clamping ranges (material thickness)

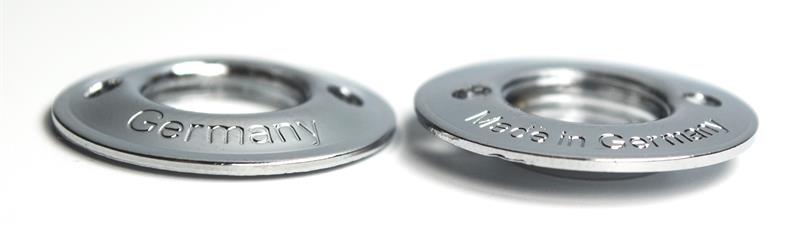

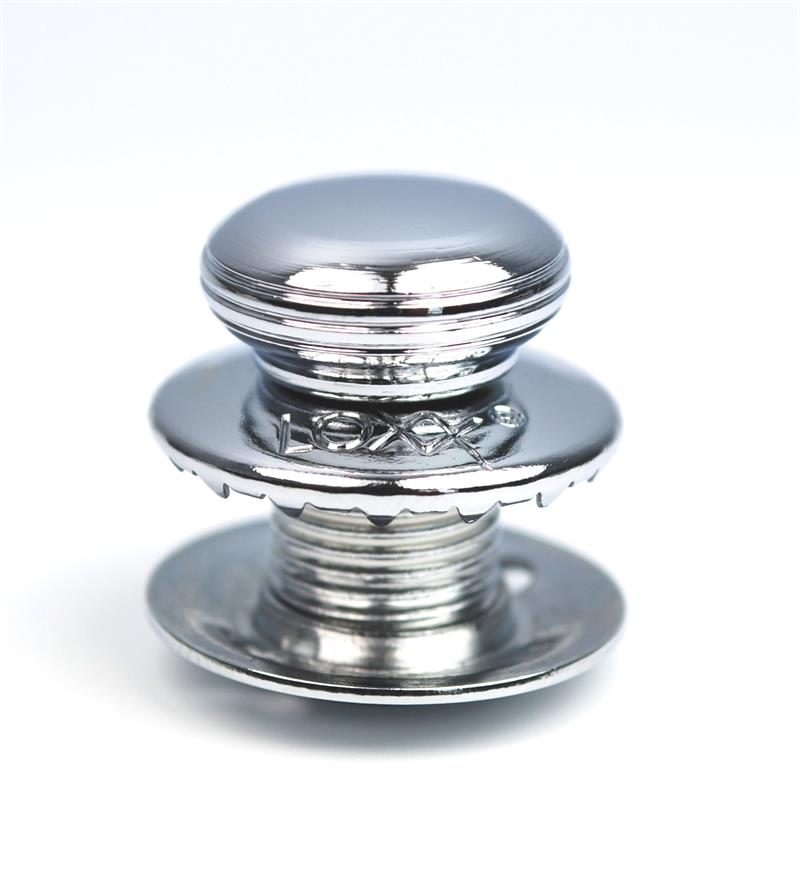

Depending on the customer's requirements, all upper parts and all large lower parts for fabrics can be supplied with the standard washer or with the long (high) washer. The high washer allows a higher clamping range (+1 mm). Click here for the LOXX® modular system.

The washers are currently available in 8 finishes: Nickel, shiny chrome, nickel-free silver matt (Oeko-Tex compliant), black chrome, old brass, old copper, gold and stainless steel. They can also be ordered separately. A service provided by Schaeffertec.

Which tools are available for the LOXX® system?

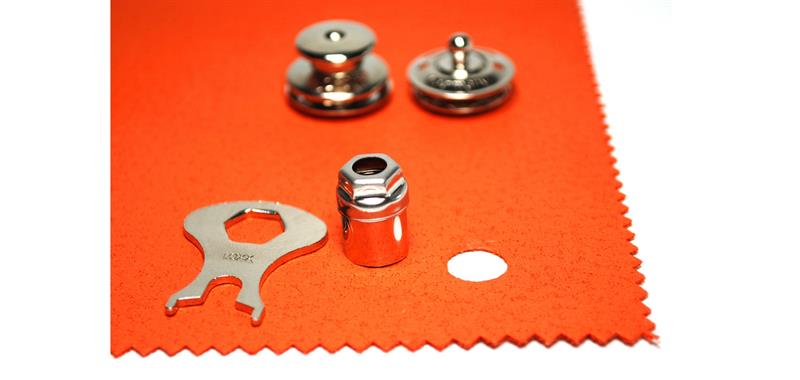

The small key

The small key, made of nickel-plated steel, is ideal if you only want to attach an upper part or a lower part for fabric now and then. It is also ideal as a small gimmick for your customers.

You can also use the hexagon to tighten single LOXX® screws - a further development by Schaeffertec.

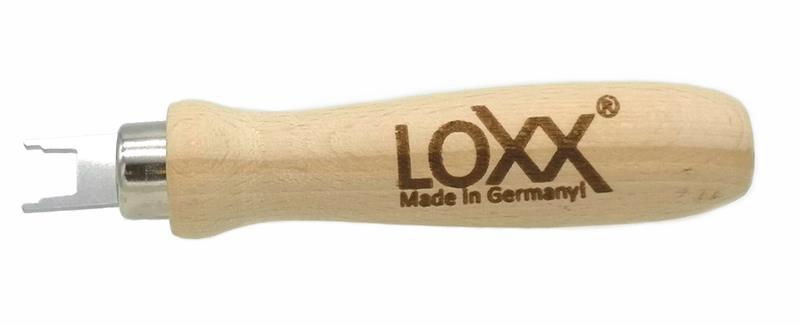

The big key

If you work with LOXX® frequently or even daily, you should use the big key. The ergonomically shaped wooden handle allows perfect power transmission. It is suitable for all washers on all upper parts and lower parts for fabric.

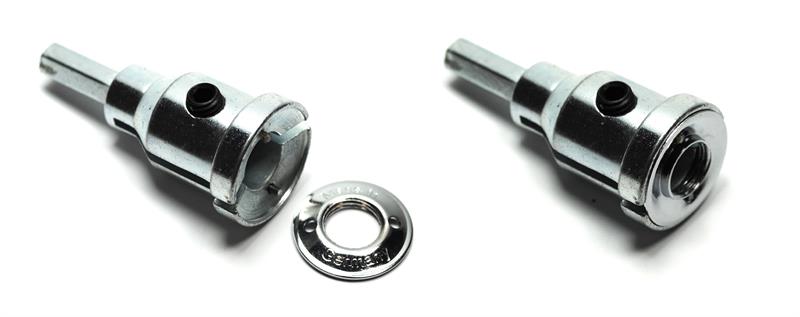

The attachment for electric drills

The LOXX® attachment for electric drills allows you to attach all washers very quickly and precisely. This attachment can be used for upper parts as well as for the lower part for fabric.

The small punching tool

The small punching tool is ideal for punching or cutting 10 mm holes. This mini punching tool was specially developed for the sale of LOXX® items in blister units. Small, handy, but sturdy it cuts or punches up to 10 holes. Download the instructions here!

A further development by Schaeffertec.

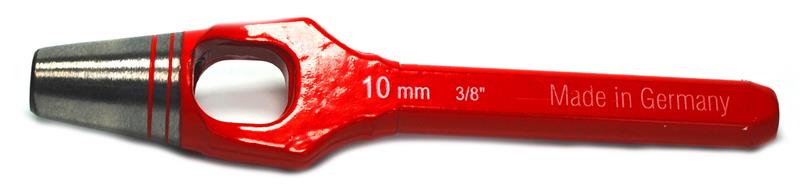

The big punching tool

A standard tool for 10 mm holes.

With this punching tool you can manually and precisely punch the necessary holes for upper parts and lower parts.

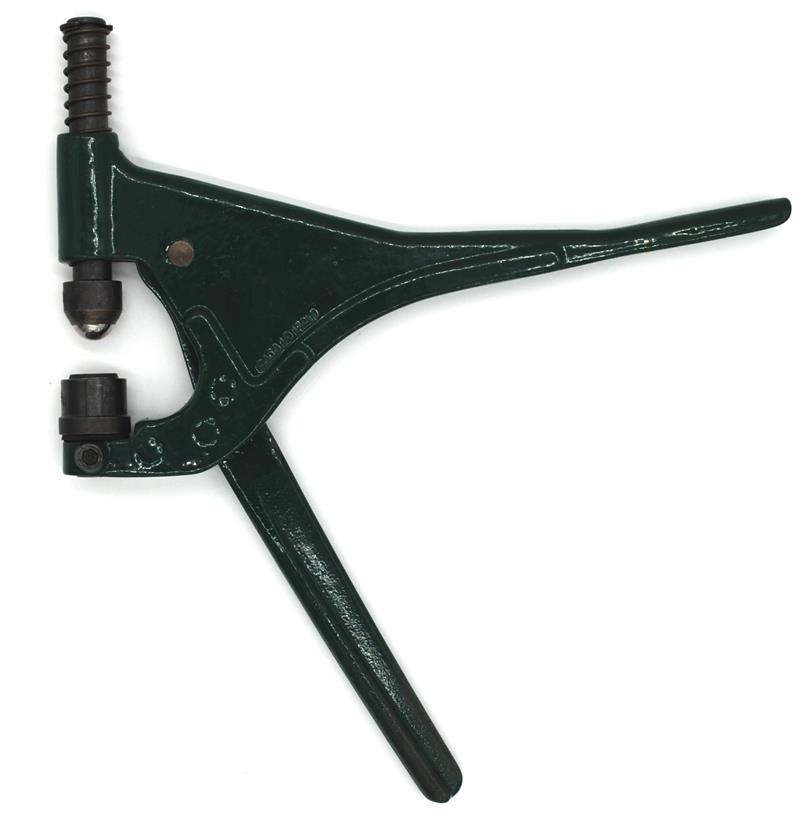

The large punch pliers

A professional punching tool.

NEW! THis useful hole punch is ideal for making the required 10 mm holes. The inserts are exangeble. Made in Itely.

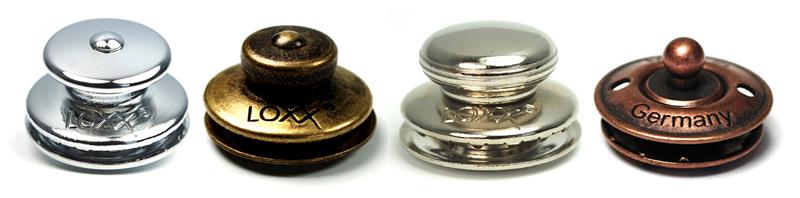

These are our upper parts:

Whether you choose the upper part with the small grip cap, with the large grip cap or with the smooth grip cap: LOXX® fasteners are always an eye-catcher for your lifestyle product. After all, our closures are not only classy and smart, they also work amazingly well!

Find a complete overview here.

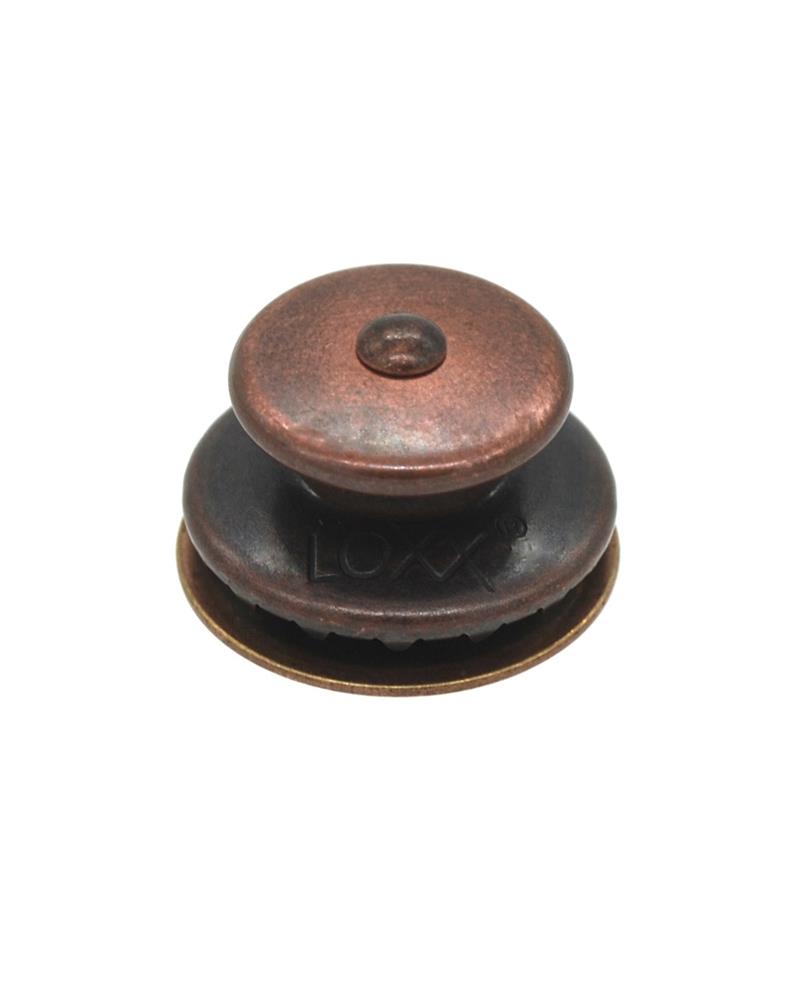

The upper part with big grip cap

loxx® grosse kappe altkupfer 05140.69000

We currently offer the upper part with large grip cap in 26 finishes:

Standard: nickel, shiny chrome, black chrome, vintage brass, vintage copper, gold, stainless steel, nickel free silver matte.

Victorian: Victor, Victoria, Henry, Mary, Sophia.

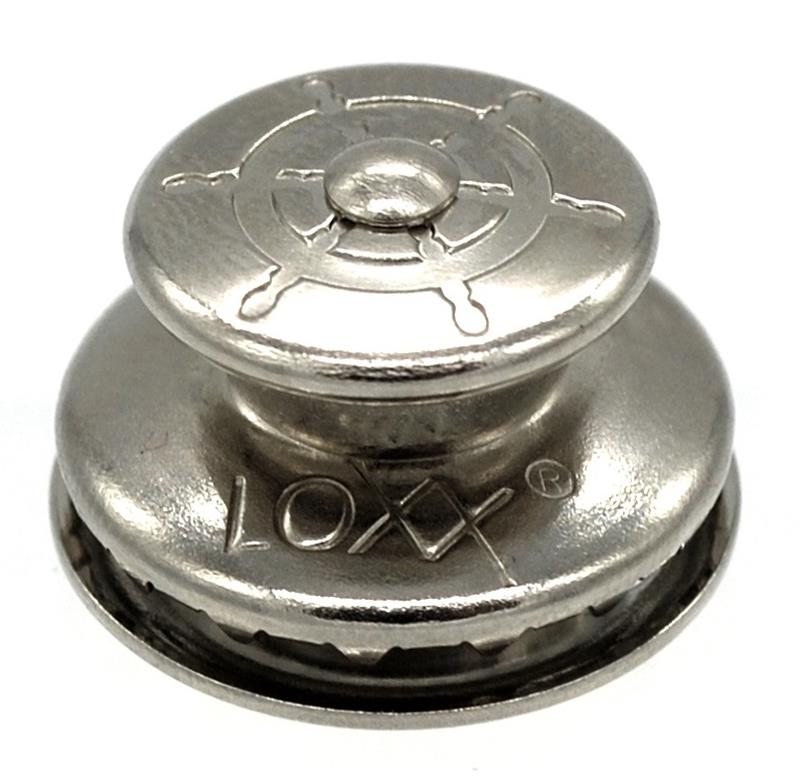

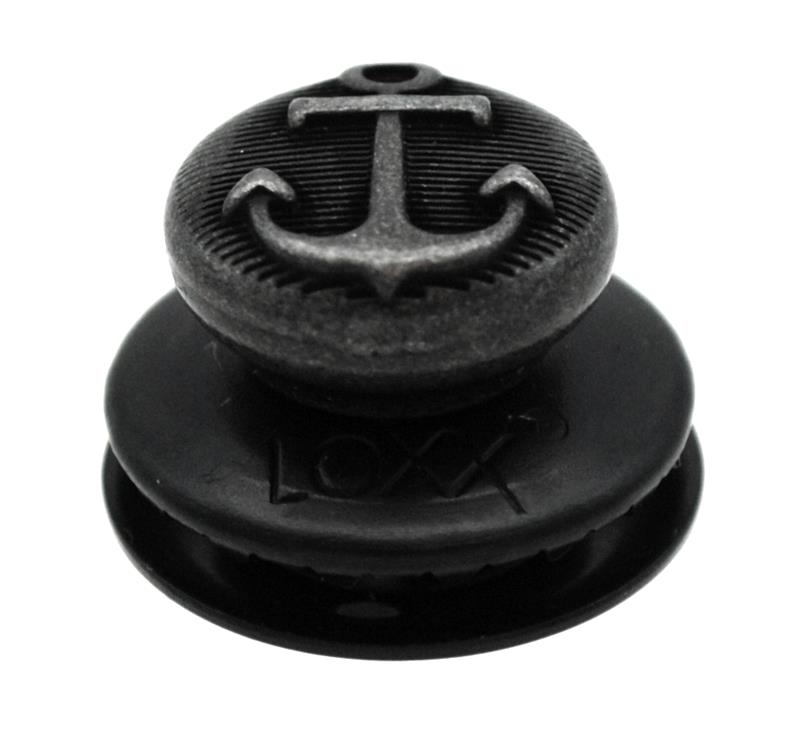

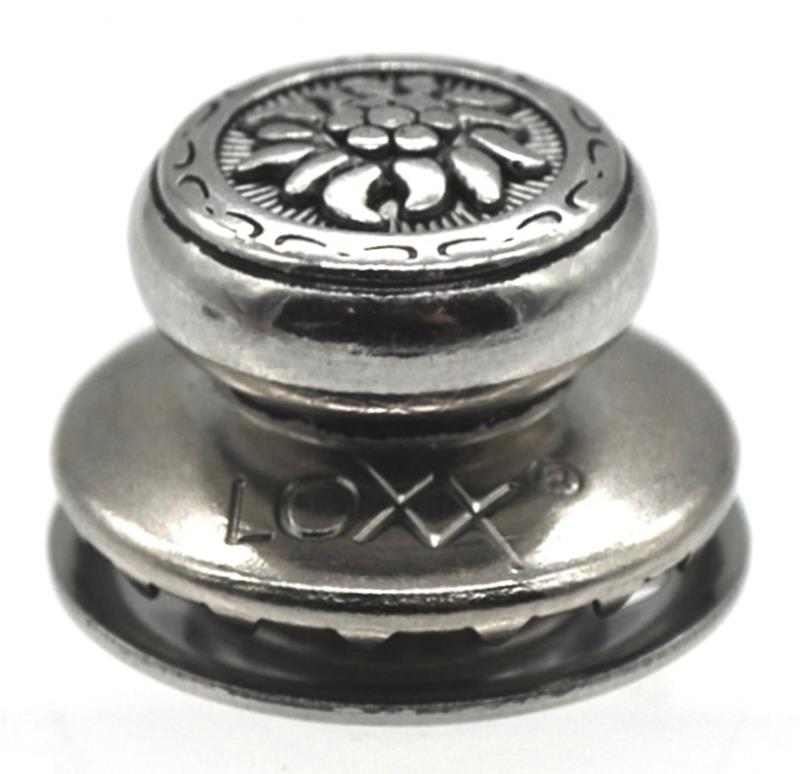

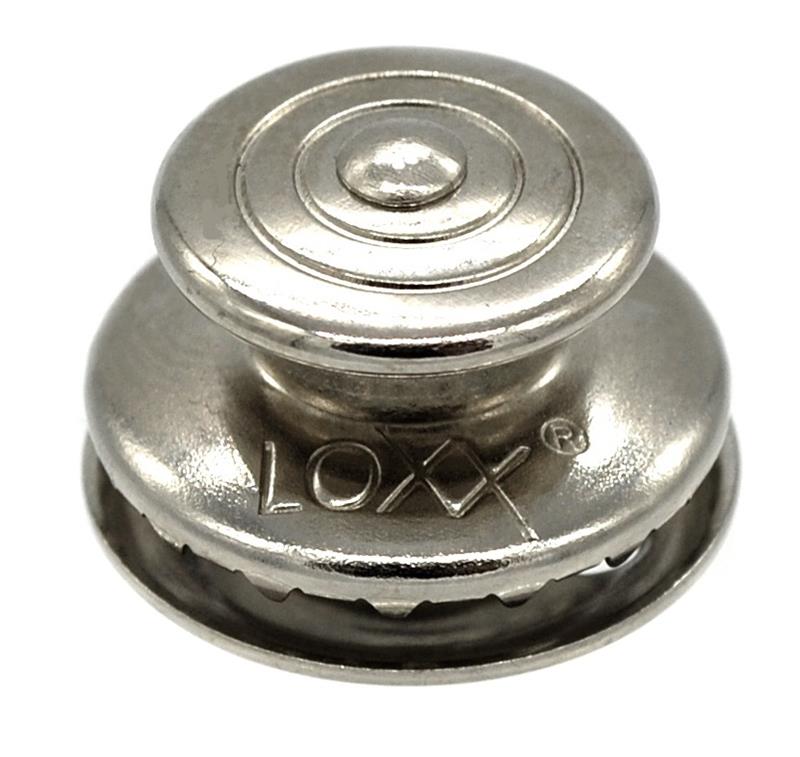

Embossed: plain rose, red rose, strass and strass with black elements, retro, compass and steering wheel.

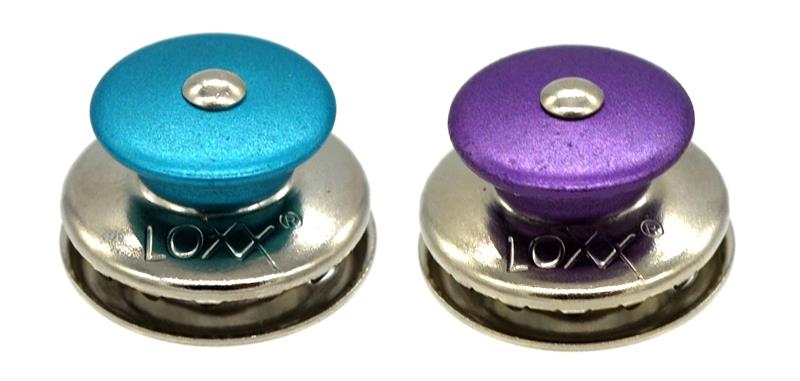

With lacquered cap: red, blue, green, yellow, purple and turquoise.

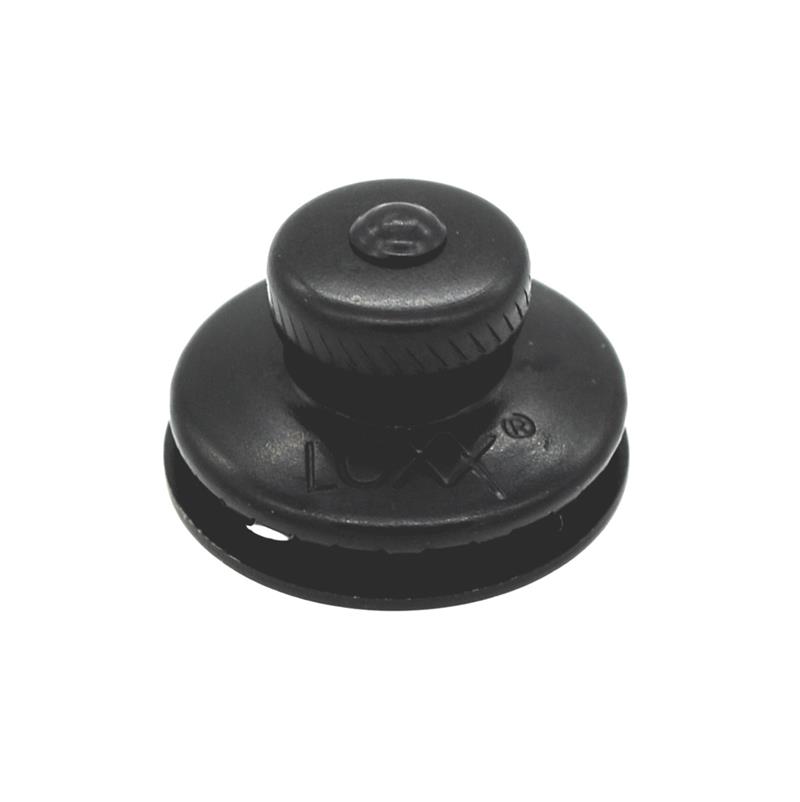

The upper part with small grip cap

loxx® kleine kappe schwarz 05134.79098_1

The upper part with small grip cap is available in 6 standard finishes:

Nickel, shiny chrome, black chrome, vintage brass, vintage copper and gold. Other finishes are available upon request.

Click here for our catalogs and product information.

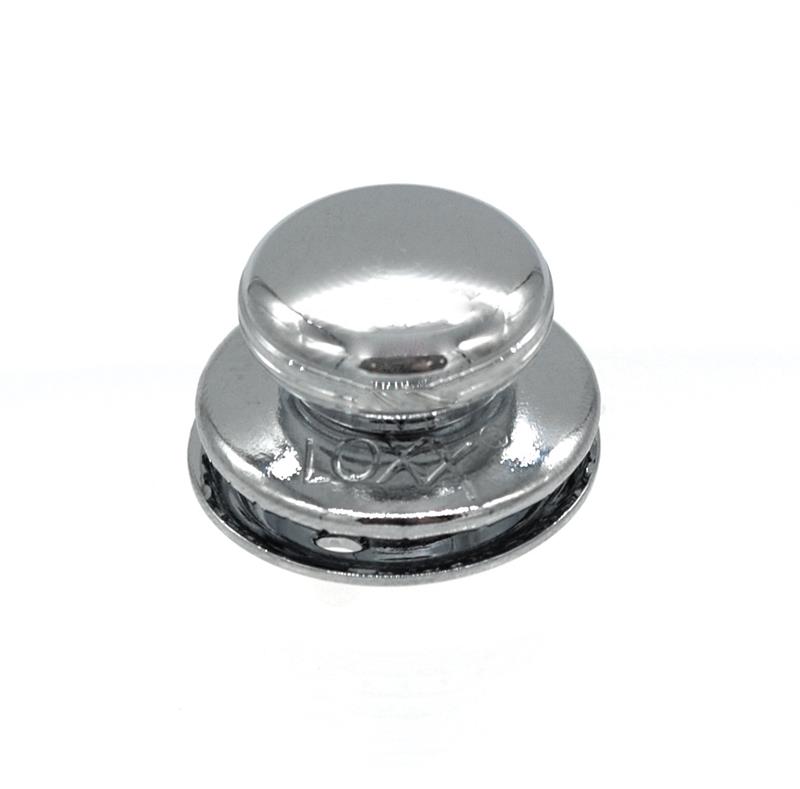

The upper part with smooth grip cap

The upper part with smooth grip cap is available in 6 different colors:

Nickel, shiny chrome, vintage brass, vintage copper, black chrome, and now also available in nickel free silver matt (Oeko-Tex II compliant). Other finishes are also available upon request.

Click here to see our catalog.

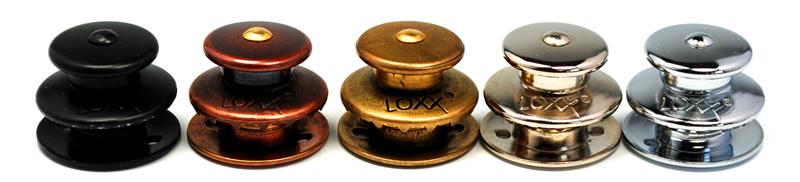

The upper part XL

If you use thicker materials or want to join several layers of fabric, we recommend the use of the LOXX® upper part XL. This fastener has a clamping range of up to 6 mm and is available in five finishes:

Nickel, shiny chrome, vintage brass, vintage copper and black chrome.

The upper part Evil Skull

NEW!

Our skull upper is now available in two new versions:

Evil Skull in Gunmetal/Black Chrome
and
Evil Skull in old nickel with black elements.

Not only for heavy metal fans a real treat!

Our favorites: Victor & Victoria!

loxx upper part victorian in brass and black

These Victorian upper parts have become absolute favorites within a few weeks, and therefore did not remain the only ones of their kind.

With Schaeffertec and LOXX you can always look forward to new and exciting creations!

Colorful LOXX® - spice up your life!

For years we have been looking for a good solution to be able to offer you our snap fastener not only in "technical" but also in colorful finishes. We have succeeded in finding this solution! In cooperation with our Wuppertal based partner ROTOVER, we can offer you LOXX® upper and lower parts with a wafer-thin but scratch-resistant metallic surface. How it works, however, remains our secret, and the secret of a first-class refiner (www.rotover.de).

These are the different lower parts for fabric to fabric connections:

These are the different lower parts for fabric to fabric connections.

There are various ways to join two layers of fabric, leather, fleece, tarpaulin, etc. with our fastening system. Below we present the most common methods. For more information, please also check our catalogs and product information.

You can find a overview of of our most common lifestyle products here.

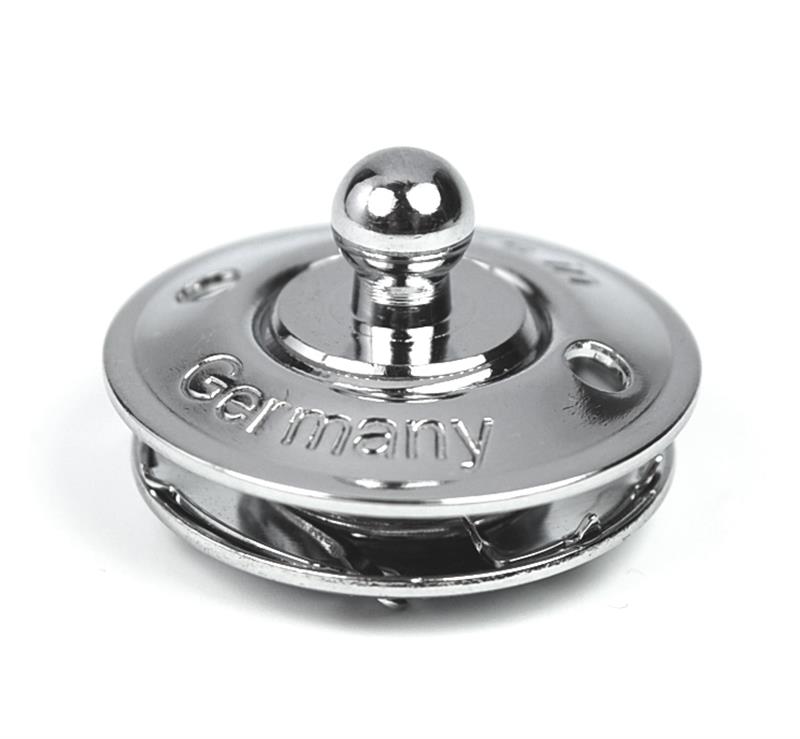

The big lower part for fabric

Like all upper parts, this lower part is attached without sewing or tools. Punch a hole, push the thread through, tighten the washer, done! This lower part is also called fabric screw. The maximum clamping range depends on the selected washer.

These large lower parts for fabric are available in nickel, shiny chrome, black chrome, vintage brass, vintage copper, stainless steel, gold and nickel free silver matt (Oeko-Tex II compliant).

Click here for the application video.

The small lower part for screwing

An ingenious novelty!

No spindle or hand press is required for this small lower part. The new small lower part is screwed together. The necessary screws (available in two lengths) and the washers (Ø 8 mm) are made of stainless steel and are included in the scope of supply.

Two clamping ranges allow the installation on very thin or very thick materials:

Screw M 2.5 x 6 mm = clamping range 0 - 4 mm.
Screw M 2.5 x 8 mm = clamping range 2 - 6 mm.

The following tools could be helpful for the installation:

Revolving punch pliers (e.g. from Prym) - hole size 2 mm
Micro screwdriver with slot in 0.5 mm (e.g. from WERA)

The small lower part for screwing is currently available in 5 surfaces: Natural brass and brass plated in nickel, vintage brass, vintage copper and black nickel.

Find the information sheet here.

The small lower part for riveting

This small lower part is ideal for very thin fabrics, or thin leather (clamping range max. 2 mm). It is perfect for those places where the big lower part fabric is too large, or where it simply fits the design better.

This small rivetable bottom part is currently available in three finishes: Nickel, vintage brass and browned.

Upon request, we will gladly make other finishes for your collection.

Please note that a screw press or hand press and appropriate tools (upper and lower dies) are required to rivet this lower part.

Check out our information sheet here.

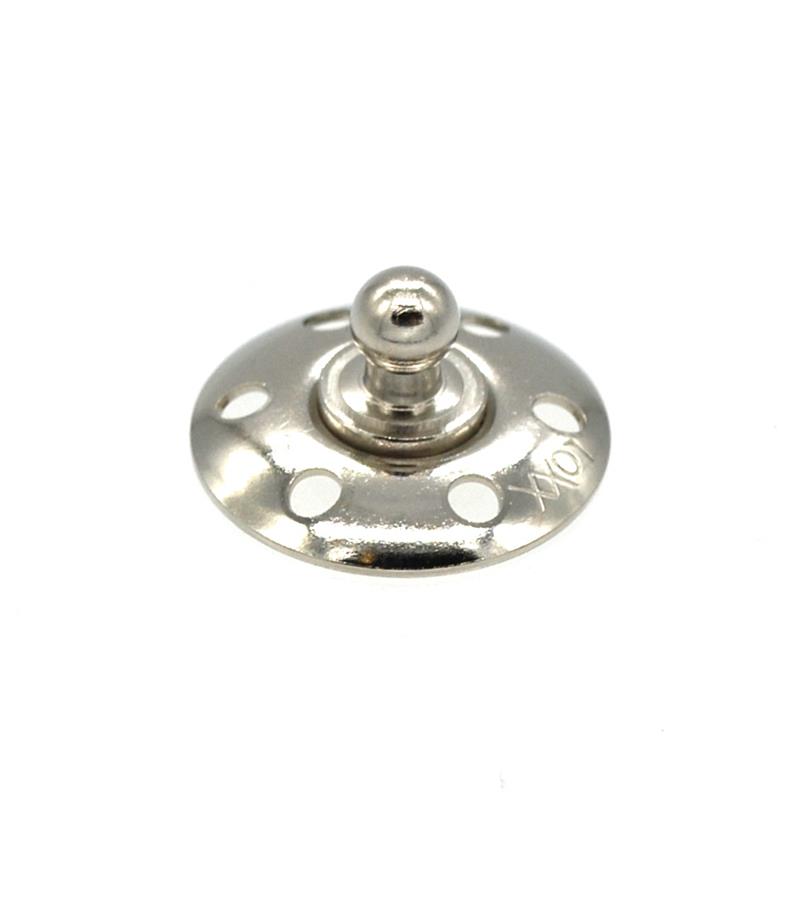

The lower part for sewing

The fabric lower part for sewing is available in nickel plated brass and chrome plated brass. It is an easy sew-on alternative to the large lower part for fabric. The fabric does not need to be perforated with this LOXX® bottom part. Click here to view our catalogs.

Find a compact illustrated overview of all upper and lower parts for the lifestyle sector here.

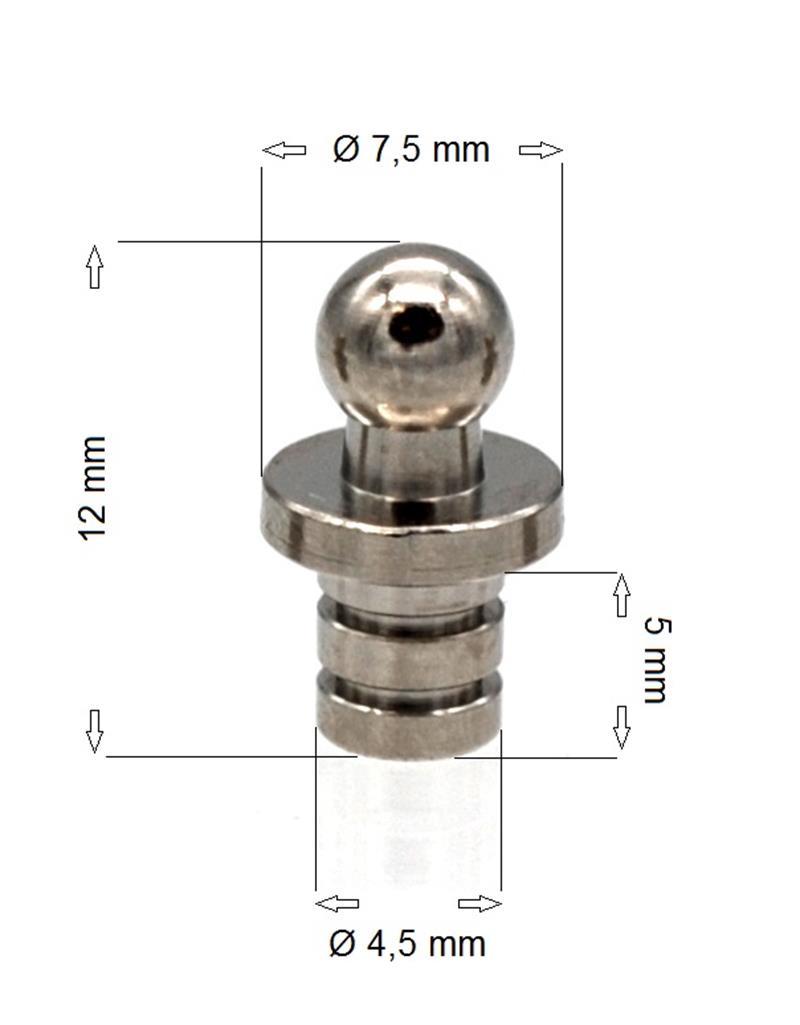

The small lower part for gluing in

loxx® unterteil zum einkleben abmessungen

The pin of this lower part has a diameter of 4.5 mm, a length of 5 mm, and two grooves. It can be glued in easily and permanently with a suitable adhesive.

Because of the grooves in the pen the glue is distributed evenly which gives the pin a particularly good hold.
As a standard, the LOXX® lower part for gluing in is available in nickel plated brass. Other finishes are available on request.
